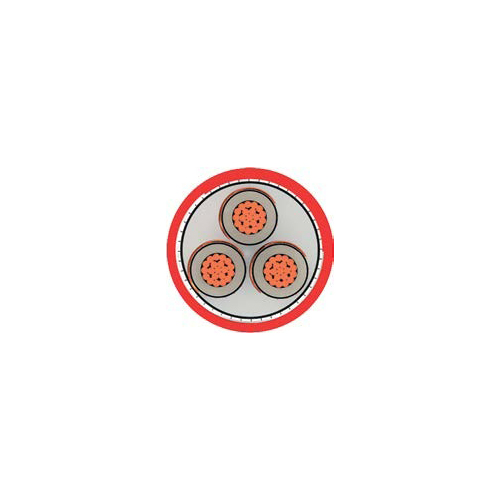

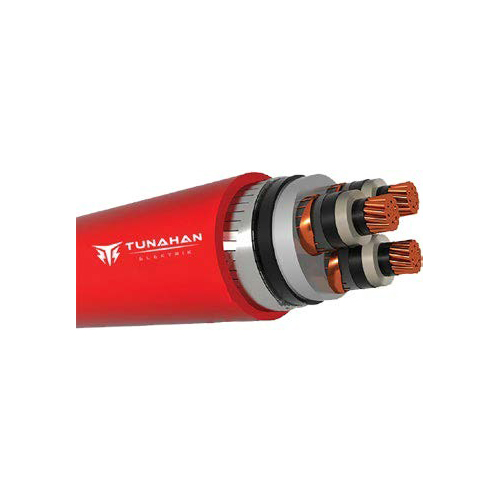

3.6/6 kV XLPE Insulated Flat Steel Wire Armoured Three Core Cables With Copper Conductor

Applications:They are used in cable ducts, outdoor and indoor installations, under ground where the short circuit levels are high and industrial areas fed by electrical also these cables use where there is risk of mechanical damage.
Technical Data
Maximum operating temp.:90°C
• Max.short circuit temp.:250°C (+≥ 5 sn)
• Installation temp.min:-5 °C
• Standarts: TS IEC 60502-2 VDE 0276

Normal Kesit  Kablo  Dış Çapı  Akım Taşıma Kapasitesi  Çalışma İndüktansı  Çalışma Kapasitesi  İletken  DC Direnci  (20°C)  Net Ağırlık  Sevk Uzunluğu
mm2  mm  Havada  Toprakta  m H/Km  µF/km  Ohm/Km  KG/KM  Mt
1X25/16  20.00  164 166 0.69  0.20  0.727  660 1000
1X35/16  21.00  199 198 0.66  0.22  0.524  770 1000
1X50/16  22.00  238 233 0.64  0.25  0.387  910 1000
1X70/16  24.00  297 285 0.61  0.29  0.268  1130 1000
1X95/16  25.00  362 340 0.58  0.32  0.193  1400 1000
1X120/16  27.00  417 387 0.56  0.35  0.153  1640 1000
1X150/25  28.00  473 431 0.55  0.38  0.124  2020 1000
1X185/25  30.00  541 485 0.53  0.42  0.0991  2380 1000
1X240/25  33.00  637 559 0.51  0.46  0.0754  2930 1000
1X300/25  35.00  724 625 0.49  0.51  0.0601  3530 1000
1X400/35  39.00  824 696 0.47  0.57  0.0470  4500 1000
1X500/35  39.90  944 778 0.46  0.63  0.0366  5520 1000
1X630/35  43.70  1071 861 0.44  0.70  0.0283  6890 1000
